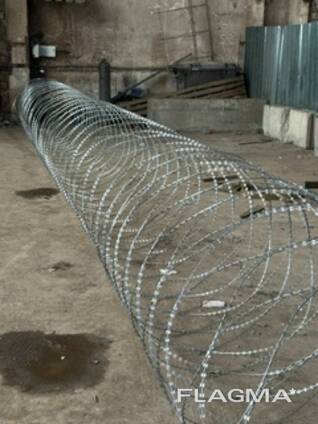

Yegoza production line

Specifications and description
•
o Country of origin
1 Press Germany 600 strokes/min
General information
1. The automatic uncoiler holds max. 2 tons of steel strip;
2. Customized mechanical press.
3. Stepper motor for fast and smooth feeding of the steel sheet.
4. Control cabinet with touch screen and PLC control.
5. Delta inverter for adjusting the working speed.
7. Special press mold made of hardened alloy ensures low raw material loss.
8. Centralized lubrication system
9. Rigid press frame, which ensures a long service life.
10. The blade winding machine uses a counter for automatic counting of loops.
11. The inverter easily adjusts the speed.
12. The diameter of the roller for finished loops can be adjusted from 350-1000 mm
The line consists of a stamping machine and a winding machine. 2 lines for crimping the wire with a blade
The stamping machine cuts steel strips into various razor blade shapes using different press molds.
The winding machine is used for unwinding the metal strip and winding the finished products into rolls.
Technical parameters:
Press Uncoiler
Speed 220-280 m/h 800kg/8h 3000 m/h
Material Steel Steel
Thickness 0.5±0.05mm (the forms listed below) 2.5-3mm
Motor power 2.2kw/ 1.5kw
Weight 2200 Kgs 300kgs
Overall dimensions 1325×990×2140 mm 1100*750*1200mm
Possible options
1. Yegoza packing gun
Used for fastening coils.
1.1 Portable clip gun, easy to use.
1.2 Pneumatic drive, works quickly and flexibly.
Model: M87 5 pcs
Magazine: 40-50 pcs

Weight: 15KGS/ctn
Size: 350*200*150 mm
Full set
1 set of uncoiler
1 mechanical press
1 wire winder
2 lines for crimping the wire with a blade 2 pcs
2 press molds
