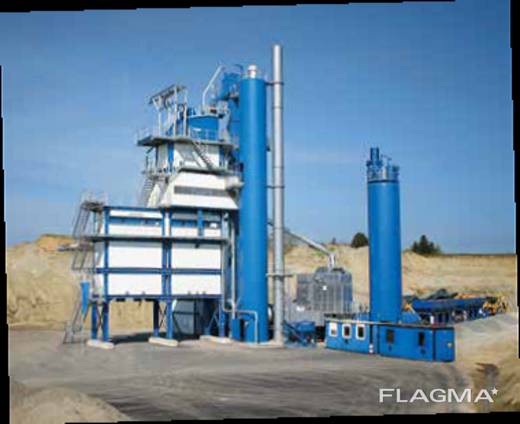

Used stationary asphalt plant Benninghoven TBA-200

Used stationary asphalt concrete plant Benninghoven TBA-200-K/U 200 t/hour (1999) Year of production: 1999 Product output: 500.000-600.000 T Replaced components: Computer Control system: 2013 Burner replaced with Combi (Diesel-Natural Gas): 2015 Overhaul of equipment: 2016 Currently, the plant is in full working order. Standard conditions: The plant is designed to produce 200 t/h of road mixture with the finished product at an initial moisture content of 4% and 160 ° C under the following standard conditions: Temperature of units entering the dryer greater than 10ºC • Altitude • Average density of feed aggregates 1,650 kg / m3 • Liquid fuel No: 6 calorific value ≥ 9,200 kCal / kg • Liquid fuel No: 4 calorific value ≥ 9,700 kCal / kg • Calorific value of diesel fuel ≥ 10,200 kcal / kg • Calorific value of natural gas ≥ 7,600 kcal / kg • Increase temperature of hot units 160 K • Residual moisture content in the mixture 0.3% • Maximum. unit size 40mm • 3mm through material screen 35% • 80m through through material screen 8% • Cumulative specific heat capacity% 0.21 kcal/kg ºC • Production rate includes all recovered aggregate and average 5% in bitumen with added mass • The material is non-porous and hygroscopic with normal shape • Production tolerance in accordance with environmental conditions and parameters ± 10% Aggregate material supply system 5 pcs. Material bins Volume: 15 m3 each 2 pieces Vibrators for sand bin Drying drum Length: 9.000 mm Diameter: 2.400 mm Aluminum sheet shell prevents heat loss. Burner - Benninghoven “Kombi” Rax-Jet Turbo 3 GO “S” Liquid fuel (diesel/fuel oil) and natural gas. The burner is a compact monoblock design. The burner is made of heat-resistant steel. The temperature is measured in the dryer's drying chute with a fast-acting temperature sensor FE-Constantan. Equipment for the use of heavy fuel and natural gas has been installed. Heater "ÖW3" Natural gas supply system PMC Air supply control. Regulation of the burner fuel air supply using signals that the control unit receives from the programmable memory system (PMC) Dust filtration system. Filter Output: 49.000 Nm3/h Filter capacity: 70.260 Bm3/h Filter area: 694/645 m2 Vibrating screen and mixer Hot lift Height: 20.850 mm Drive: 22 kW (soft start) Screen assembly - 4 fractions Total 0-40 mm approx. 45.0 t Bitumen capacity: 478 kg Weighing Capacity: 400 kg Double shaft mixer to ensure uniform mixing process. Drive motor: 2 x 30 kW Capacity: 2,500 kg Ready-mixed asphalt silo The system is designed as two containers and one section. Also, the entire surface of the bunker is covered with 150 mm thick insulating mineral wool. Silo volume: 1x24 m³ Unloading height: 3,800 mm Discharging-Loading: 2 separate doors (electric heating) Bitumen heating system. Dosing pump for bitumen Feed capacity: 580 l/min Bitumen containers 2 pcs * 35 m3 each. Capacity for liquid fuel 35 m3. Control cabin with industrial network control computer "Online Batcher 3000" Technical data for the computer control system The plant is in excellent working order. All worn out parts have been replaced. A new burner has been installed - Combi.
