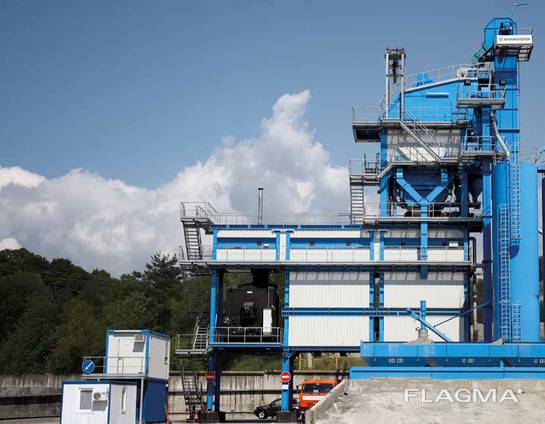

Used stationary asphalt plant Benninghoven TBA- 200

Used stationary quick-installed asphalt concrete plant Benninghoven TBA-200 t/hour (2009 onwards) Year of production: 2009 Product output: 1000.000 T Liquid fuel burner Currently the plant is in full working order. Standard conditions: The plant is designed to produce 200 t/h of road mixture with the finished product at an initial moisture content of 4% and 160 ° C under the following standard conditions: Temperature of units at the entrance to the dryer more than 10ºC Average density of feed aggregates 1,650 kg/m3 Liquid fuel No: 6 calorific value ≥ 9,200 kCal / kg Liquid fuel No: 4 calorific value ≥ 9,700 kCal / kg Calorific value of diesel fuel ≥ 10,200 kcal / kg Calorific value of natural gas ≥ 7,600 kcal / kg Temperature increase of hot units 160 K Residual moisture content in the mixture 0 .3% Maximum. unit size 40 mm Material through screen 3 mm 35% Material through screen 80 m 8% Total specific heat capacity% 0.21 kcal/kg ºC Production rate includes all recovered filler and average 5% in bitumen with added mass Material is non-porous and hygroscopic with normal shape Production tolerance in accordance with environmental conditions and parameters ± 10% Aggregate material supply system 5 pcs. Material hoppers Volume: 15 m3 each Loading height: 3.500 mm Nets 5 pcs. These 100 x 100 mm grids are placed on aggregate hoppers to prevent irregular aggregates and foreign materials from entering the belt. Belt feeders Belt feeders are driven by an inverter-controlled gear motor. Narrow units and guide rollers ensure smooth belt running. The material flow sensor signals the absence of a unit. Belt width: 650 mm Motor power: 2.2 kW Drying drum Type: TT 24” Temporary proportional heating is designed for uniform and high-quality drying, and the highest level heating is intended for low exhaust gas temperatures. Dryer drum (TT. 24) Length: 9.000 mm Diameter: 2.400 mm Drive motors: 4x18.5 Kw Aluminum cladding The aluminum sheet casing prevents heat loss. Burner - Benninghoven RAX-JET TURBO 3 Liquid fuel Basic explanations: The burner is a compact monoblock design. The burner is mounted on steel rails, allowing the entire unit to slide back for inspection of the burner and dryer drum. For optimal operation of the dryer, air flow is generated by the internal radial-axial fan to ensure the best combustion. Burner Blower The burner fan is an axial fan with internal conveyor motor of special enclosed, waterproof and dustproof design. Dust filtration system: Filter - Output: 49.000 Nm3/h Filter capacity: 70.260 Bm3/h Filter area: 694/645 m2 Exhaust fan Drive: 110 kW Negative pressure control: automatic Coarse filler screw conveyor For transporting coarse filler. Length: 6000 mm Screw conveyor for fine material For feeding fine material. Length: 6000 mm Hot bins - 4 bins Sand / bypass 0-4 mm approx. 18.0 t Crushed stone 4-12mm approx. 9.0 t Crushed stone 12-20 mm approx. 9.0 t Stone 20-40 mm approx. 9.0 t Total 0-40 mm approx. 45.0 t Insulation: 150 mm 100 kg/m³ Bitumen spray Capacity: 1.140 l/min. Double shaft mixer ensuring a homogeneous mixing process. Drive motor: 2 x 30 kW Capacity: 2,500 kg Finished asphalt hopper 50 t Bitumen tanks 2* 35 m3 Online Batcher 3000 computer network control system The plant is in excellent working order. The selling company provides maximum assistance in organizing installation supervision and other technical issues related to plant maintenance.
