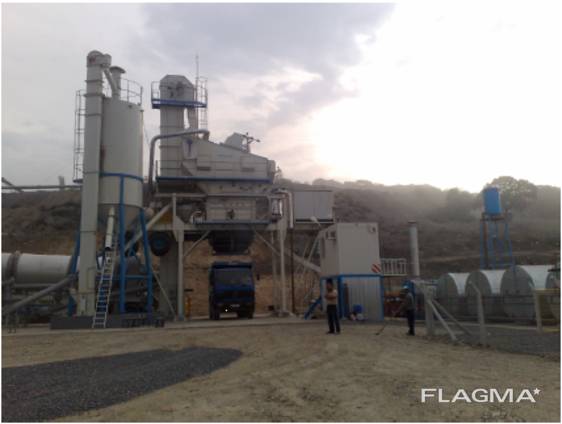

Used Mobile Asphalt Plant Benninghoven MBA 160 t/h 2008

Used Mobile asphalt plant W-Benninghoven - MBA 2000 (160 t/hour, Germany) 2008. Operating time 750,000 tons. Technical data: Mobile asphalt plant Benninghoven MBA 2000 Mixing capacity (t/h) 160 Drying capacity (t/h) 145 General information - All data refers to material with a moisture content of 4%. Wind load: 25 m/s; horizontal earth acceleration: 0.4 m/s2; snow load: 0.85 kN/m2. Installation methods Mobile steel bases (installation site must be suitable for ground pressure 350 kN/m²) Pre-dosing system Number of dispensers Wheeled 5-section pre-dosing system Capacity (m3) 8 Loading ramp Yes (included in delivery, required fill (provided) . operating side) with a height of at least 650 mm) Loading width (mm) 3400 3400 Dryer drum Type MT 8.22 K Drum drive power (kW) 1 x 37 Burner Type (standard fuel oil) EVO JET 2 FU liquid. fuel Burner power (kW) 11.9 Types of fuel (optional) Natural gas, liquefied gas, coal dust - combined version possible Dust removal Capacity (Nm³/h) 42000 Screen/hot minerals hopper Screening capacity (0–2 mm, t/h) h) 160 Screening 5-tier Hot minerals hopper 30 t/5 chambers (including sand + bypass) Mixing and weighing section Mixer (kg) 2000 Scales for mineral rocks (capacity, kg) 2000 Scales for aggregates (capacity, kg) 200 Bitumen scales (capacity, kg) 200 Ready-mix storage hopper/aggregate silos Total capacity of ready-mix storage hopper MGVS Wheeled ready-mix storage hopper 50 t (1-chamber) Aggregate silos Chassis-mounted silo 50 m³ for own filler, silo on chassis 50 m³ for imported filler Bitumen system Wheeled version, with electric heating and thick insulation. 150 mm 6 pcs. horizontal bitumen tanks - 45 m3 2 units. horizontal bitumen tank - 50 m3 Control Computer control system Benninghoven BLS 3000: switching and power parts, air conditioning and main low-voltage distribution board Burner Benninghoven is the world leader in the field of burners and the only manufacturer of burners that operate on four types of fuel. Thanks to proprietary know-how, the company offers unique burners with excellent performance characteristics: > Simple, modular design > Compact design > Inspection covers on both sides > Internally located fan Drying drum According to the process concept, the drying drum is an essential component for the production of asphalt concrete mixtures, which must ensure the removal of moisture from the raw material and thereby guarantee its effective binding with bitumen. Mixer The mixer is the main component of the asphalt mixing plant. It is here that intensive mixing of minerals with binders and fillers occurs to obtain a homogeneous finished mixture. The mixing cycle – including loading and emptying – lasts 45 seconds. Only high-quality materials are used in the design of the mixer. All this is offered along with optimal wear protection. This ensures a long service life of the plant and trouble-free production processes. Screening All mobile asphalt concrete plants are equipped with a five-layer screen as standard. Thanks to this, standards and formulation requirements in various countries around the world are easily met. Dust collection system Benninghoven dust collection systems/filters stand out due to their very compact and modular design. Thanks to a small number of simple connections, the system can be installed quickly. In addition, the dust collection system is optimally accessible for inspection and maintenance. Thanks to their high-quality processing and thermal resistance, the filter pockets are designed for a long service life.
