Used Asphalt Plant Benninghoven ECO- 320 t/h, 2011

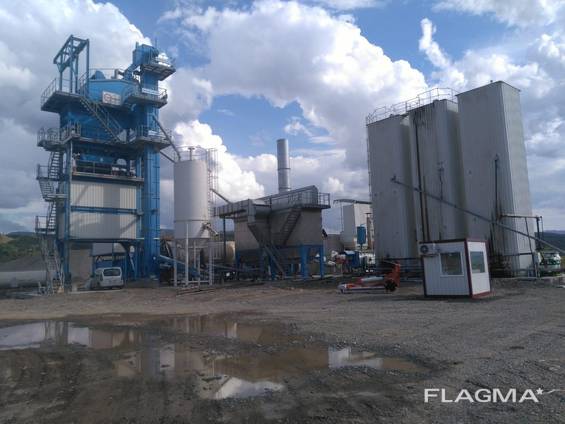

Used Quickly assembled asphalt plant Benninghoven ECO 4000 - 320 t/h, 2011 Highest mobility along with optimal flexibility in operation distinguishes plants of this type, which can be operated stationary, but are also easily transported to other construction sites. The main difference between ECO asphalt mixing plants is the design of their main components, which corresponds to the dimensions of a standard (20- or 40-foot) shipping container, allowing them to be easily transported by truck, sea or rail. Production parameters: Model ABZ ECO 4000 Mixing capacity (t/h) 320 Drying capacity (t/h) 290 General information All data refers to material with a moisture content of 4% Wind load: 25 m/s; horizontal earth acceleration: 0.4 m/s2; snow load: 0.85 kN/m2. Installation methods Permanent = solid concrete foundation; with the ability to move - mobile steel bases Pre-dosing system Number of dosers 5-tier pre-dosing module Capacity (m3) 12 Loading ramp Provided by the operator Loading width (mm) 3500 Dryer drum Type TT 11.26 Drum drive power (kW) 4 x 22 Burner Type EVO JET 4 FU liquid fuel Burner power (MW) 24 Dust removal system Capacity (Nm3/h) 78,000 Screen/hot minerals hopper Screening capacity (0–2 mm, t/h) 270 Screening 5-tier Hot minerals hopper 17 t/ 5 chambers (including sand + bypass) Mixing and weighing section Mixer (kg) 4000 Scales for mineral rocks (capacity, kg) 4000 Scales for aggregates (capacity, kg) 400 Scales for bitumen (capacity, kg) 350 Finished storage hopper mixtures/silos for aggregates Total capacity of the ready-mix storage hopper MGVS 60 t (2 chambers + direct loading sector) Silos for aggregates Silo 60 m³ for own aggregate, silo 60 m³ for imported aggregate. Bitumen system Version vertical, electrically heated and insulated 200 mm Capacity (m3) 3 x 60 Computer control system Benninghoven BLS 4000: switching and power sections, air conditioning and main low-voltage distribution board Asphalt granulate supply systems Through the middle ring of the drying drum - Loading 25% asphalt granulate Plant is in excellent working condition. The selling company provides maximum assistance in organizing installation supervision and other technical issues related to plant maintenance.
