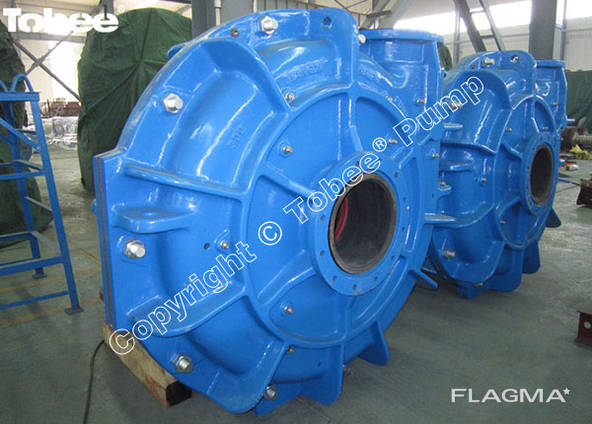

Tobee 16/14TU-AH Rubber Slurry Pump

Tobee 16/14TU-AHR Rubber Lined Slurry Pump is an end-suction, split-case, centrifugal slurry pump that has set the world standard for heavy duty abrasive pumping applications. With large shaft diameters, heavy duty bearing assemblies and robust slurry pumping capacity, the 16/14 slurry pump provides a cost-effective and ideal alternative to longer lead times and the difficulties associated with working with large multinationals.

Design Features:

√ 16/14 TU AHR Pump wet parts are made of Rubber.

√ 16/14 TU AHR Pump bearing assembly uses a cylindrical structure, adjusting the space between impeller and front liner easily. They can be removed completely when repaired. Bearing assembly uses grease lubrication.

√ The shaft seal can use packing seal, expeller seal and mechanical seal for all slurry pumps.

√ The discharge branch can be positioned at intervals of 45 degrees upon request and oriented to any of eight positions to suit installations and applications at the working site.

√ Drive types include V-belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices.

√ Wide performance range, good NPSH and high efficiency.
