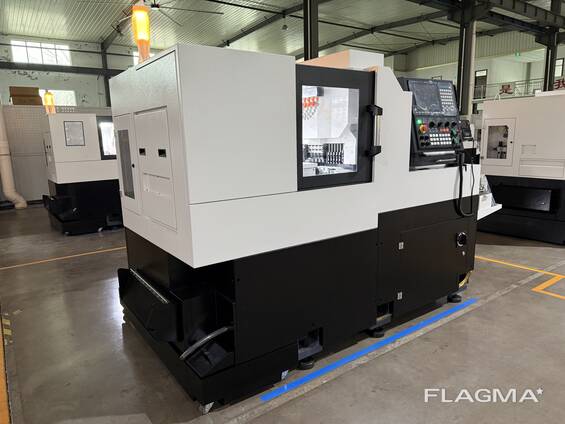

Multifunctional automatic longitudinal turning lathe

Specifications M206
CNC machine FANUC
Spindle rotational speed
Spindle: 10000 rpm
Counter-spindle: 8000 rpm
Max. workpiece diameter: Φ20 mm
Feed length in one pass: 230 mm / 2.5D
Rapid traverse: 32 m/min (X1: 24 m/min)
Tool capacity:
External machining tool: 6 pcs [φ12×12]
Internal machining tool: 5 pcs [φ25]
Vertical driven tools for radial machining: 4 pcs [ER16]
Counter-spindle tools: 8 pcs fixed [ER16]
Motors:
Main spindle: 2.2/3.7 kW
Counter-spindle: 1.5/2.2 kW
Horizontal: 1 kW
Drive (Z1/Z2/X2/Y: 0.5 kW; X1: 0.75 kW)
