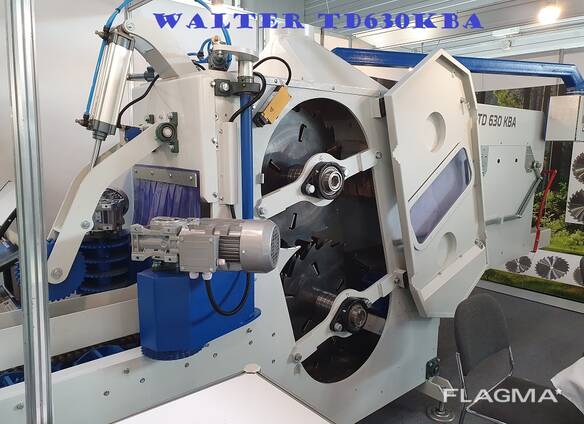

Lumbering machine TD630KBA Walter TD500KBA

The timber cutting machine is designed for sawing round timber into unedged boards and beams, with maximum cutting productivity (40÷120 m3/shift) and quality. At the same time, to ensure maximum yield of useful lumber. The TD500KBA timber cutting machine is used in conjunction with longitudinal trimmers, dividing machines for slab processing and multi-sawing machines. Widely used in pallet production, also used in small-capacity sawmills. The motors operate in direct drive without pulleys or V-belts. At the same time, the efficiency of the saw drive mechanism is higher and less powerful motors are sufficient than those of machines with a belt drive. The chain feeding system with an end stop ensures reliable supply of logs. It is also possible to make a feed chain with teeth. Powerful riving knives at the exit of the machine prevent clamping of saws during operation, significantly extending the life of the tool. To effectively remove sawdust, a conveyor belt is used, which allows operation at high feed speeds. Aspiration pipes allow you to effectively remove sawdust without wasting time stopping the machine to remove waste. Claw protection at the entrance to the machine prevents the workpiece from being thrown out and ensures safe work for the operator. If a log with a diameter greater than the maximum is fed, the limiter is automatically activated, stopping the feed and preventing the machine from jamming. Max. log diameter, mm 350 (450) Length 1000-6000 mm Min. thickness of the central board, mm 50 Min. log diameter, mm 120 Shaft diameter, mm 70 Saw diameter, mm 500 (630) Max. number of saws on the shaft, pcs. 4-6 Capacity, m3 40-120 Engine power. upper shaft, kW 22/30/35/45 Motor power. lower shaft, kW 30/35/45/65
